SEE IN PERSON

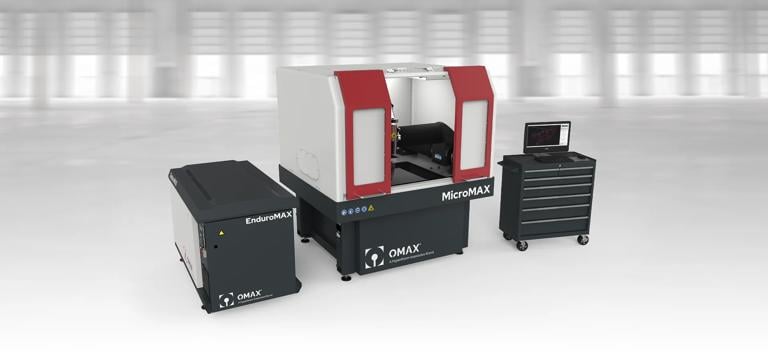

The MicroMAX is your solution for ultra-precision abrasive waterjet machining.
- Cutting envelope of 2' 1" x 2' 1" (0.63 m x 0.63 m)
- ±0.0001" (±2.5 micron) linear position accuracy
- Stiff construction greatly reduces vibration and increases accuracy
- Vibration isolation of table and gantries
- All components have matched thermal expansion
- Full enclosure with environmental controls provides quiet, safe and clean operation below 80db
- Advanced pressure controls for piercing delicate materials
- Standard OMAX 7/15 Mini MAXJET 5 Nozzle acquires finer precision cutting capability with a 0.007" orifice and a 0.015" mixing tube combination
- Standard Tilt-A-Jet taper eliminating abrasivejet cutting head
- Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
- Designed and manufactured at the OMAX factory in Kent, Washington, USA
- Does not create heat-affected zones or mechanical stresses
- Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
- No tool changes & minimal fixturing dramatically reduce setup
- Unlimited free training for the life of your machine
- Unlimited software upgrades for the life of the machine
- 2-year / 4000-hour limited warranty
- 3 days of onsite training upon installation
DIMENSIONS & SPECS
Footprint (with pump & controller) | 10' 2" x 7' 2" (3.10 m x 2.18 m) |
---|---|
Height (with whip plumbing) | 7' 6" (2.29 m) |
Operating Weight | 7,372 lb (3,344 kg) |
Weight (tank empty) | 3,700 lb (1,678 kg) |
X-Y Cutting Travel* | 2' 1" x 2' 1" (0.63 m x 0.63 m) |
Z-Axis Travel (with Motorized Z Axis)* | 4.5" (114 mm) |
Table Size | 2' 11" x 3' 0" (0.89 m x 0.91 m) |
Material Supports Slats | 4" x 1/8" Galvanized Steel |
---|---|
Maximum Supported Material Load | 400 lbs/sq ft (1,950 kg/sq meter) |
Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
Speed | 100 in/min (2,540 mm/min) |
Linear Positional Accuracy* | ±0.0001" (±2.5 micron) |
Repeatability* | ±0.0001" (±2.5 micron) |
Ballbar Circularity* | ±0.0005" (±13 microns) |
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).
![Video Right Image](/sites/default/files/styles/convert_to_webp/public/2021-07/machine-video-right.jpg.webp?itok=7OVhSjhH)
PUMP INFO
Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility
EnduroMAX 30HP | |
---|---|
Motor Power | 30 HP (22 kW) |
MAX Jet Power | 25.5 HP (18.7 kW) |
Output Pressure | 60,000 psi |
Orifice & Flow Rate ** | 0.012" / 0.67 gpm (0.30 mm / 2.54 lpm) |
Footprint LxWxH | 44" x 62" x 44" (1,118 mm x 1,575 mm x 1,118 mm) |
![Laser Feature Finder](/sites/default/files/styles/147_x_99/public/2021-07/accessories-laser-small.jpg.webp?itok=9DoNd1xh)
Laser Feature Finder
The Laser Feature Finder allows for visual reference before introducing water and garnet.
![Precision Optical Locator](/sites/default/files/styles/147_x_99/public/2021-07/accessories-pol-small.jpg.webp?itok=Gqj-7dlR)
Precision Optical Locator
The Precision Optical Locator is designed to let you accurately place parts on the OMAX for secondary machining operations.
![Vacuum Assist](/sites/default/files/styles/147_x_99/public/2021-07/accessories-vacassist-small.jpg.webp?itok=KYaV9yRi)
Vacuum Assist
The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.
![Bulk Abrasive Delivery System](/sites/default/files/styles/147_x_99/public/2021-07/accessories-bulkhopper-small.jpg.webp?itok=AMjO-Nwm)
Bulk Abrasive Delivery System
Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.
![Variable Speed Solid Removal System](/sites/default/files/styles/147_x_99/public/2021-07/accessories-vssrs-small.jpg.webp?itok=dBP8VNsR)
Variable Speed Solid Removal System
The Variable Speed Solid Removal System allows for controlled solid evacuation to reduce downtime.
![Chiller System](/sites/default/files/styles/convert_to_webp/public/2021-07/accessories-chiller-small.jpg.webp?itok=QAWjfhkf)
Chiller System
OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.
![Laminar Filter](/sites/default/files/styles/convert_to_webp/public/2021-07/accessories-laminarfilter-small.jpg.webp?itok=NRV_dXcW)
Laminar Filter
The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.
![Reverse Osmosis System](/sites/default/files/styles/convert_to_webp/public/2021-07/accessories-ro-small.jpg.webp?itok=0Vng83gA)
Reverse Osmosis System
The Reverse Osmosis System can remove 90% of total dissolved solid in water.
![Water Recycling System](/sites/default/files/styles/convert_to_webp/public/2021-07/accessories-wrs-small.jpg.webp?itok=oquvhV-8)
Water Recycling System
The OMAX Water Recycling System captures and reuses workable overflow water.
![Rotary Access](/sites/default/files/styles/147_x_99/public/2021-07/accessories-rotary-small.jpg.webp?itok=CY2VPS4B)
Rotary Axis
The Rotary Axis allows for 6-axis paths to create complex 3D shapes in tube, pipe, and bar stock.
