OMAX
160X
PRECISION JETMACHINING CENTER

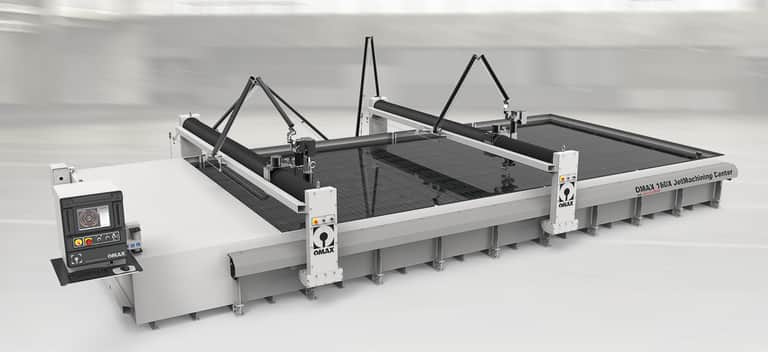

The OMAX 160X is designed for cutting more extensive or multiple-part projects.
- Available in a range of lengths from 37 to 56 feet (11.30 m to 17.06 m)
- ±0.001" (±0.025 mm) linear position accuracy
Expand all
- Backed by our exclusive IntelliMAX Premium Software
- Advanced high-precision IntelliTRAX linear drive technology designed exclusively for the abrasive waterjet environment
- Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency
- Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
- Standard 600 lb Bulk Abrasive Delivery System transports garnet from the assembly's large hopper into the Zero Downtime Hopper located on the Z-Axis
- Standard scissor-style hard plumbing
- Designed and manufactured at the OMAX factory in Kent, Washington, USA
- Does not create heat-affected zones or mechanical stresses
- Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
- No tool changes & minimal fixturing dramatically reduce setup
DIMENSIONS & SPECS
| Footprint (with pump) | 37' 1" x 25' 6" to 56' 0" x 25' 6" (11.30 m x 7.77 m to 17.06 m x 7,77 m) |
|---|---|
| Height (with scissor plumbing) | 11' 0" (3,35 m) |
| Operating Weight | 83,000 lbs to 199,000 lbs (37,648 kg to 90,265 kg) |
| Weight (tank empty) | 47,500 lbs (21,546 kg) |
| X-Y Cutting Travel* | 20' 0" x 13' 4" to 46' 8" x 13' 4" (6.09 m x 4.06 m to 14.22 m x 4.06 m) |
| Z-Axis Travel (with Motorized Z Axis)* | 8" (203 mm) |
| Table Size | 21' 7" x 14' 9" to 48' 6" x 14' 9" (6.57 m x 4.49 m to 14.78 m x 4.49 m) |
| Material Supports Slats | 4" x 1/8" Galvanized Steel |
|---|---|
| Maximum Supported Material Load | 400 lbs/sq ft (1,950 kg/sq meter) |
| Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
| Noise Level | Below 80 dBA at one meter for submerged cutting |
| Speed | 350 in/min (8,890 mm/min) |
| Linear Positional Accuracy* | ±0.001" (±0.025 mm) |
| Repeatability* | ±0.001" (±0.025 mm) |
| Ballbar Circularity* | ±0.005" (±0.127 mm) |
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).
PUMP INFO
Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility
| EnduroMAX 100 HP | EnduroMAX 50 HP | EnduroMAX 30 HP | DynaMAX 575P | |
|---|---|---|---|---|
| Motor Power | 100 HP (75 kW) | 50 HP (37kW) | 30 HP (22 kW) | 75 HP (56 kW) |
| MAX Jet Power | 85 HP (63 kW) | 42.5 HP (31.5 kW) | 25.5 HP (18.7 kW) | 51.6 HP (37.9 kW) |
| Output Pressure | 60,000 psi | 60,000 psi | 60,000 psi | 60,000 psi |
| Orifice & Flow Rate ** | 0.022" / 2.25 gpm (0.56 mm / 8.52 lpm) | 0.016" / 1.20 gpm (0.41 mm / 4.54 lpm) | 0.012" / 0.67 gpm (0.30 mm / 2.54 lpm) | 0.017" / 1.5 gpm (0.43 mm / 5.68 lpm) |
| Footprint LxWxH | 44" x 62" x 44" (1,118 mm x 1,575 mm x 1,118 mm) | 66" x 36" x 38.5" (1,676mm x 914mm x 978mm) | 66" x 36" x 38.5" (1,676mm x 914mm x 978mm | 40" x 79" x 59" (1016 mm x 1996 mm x 1509 mm) |
